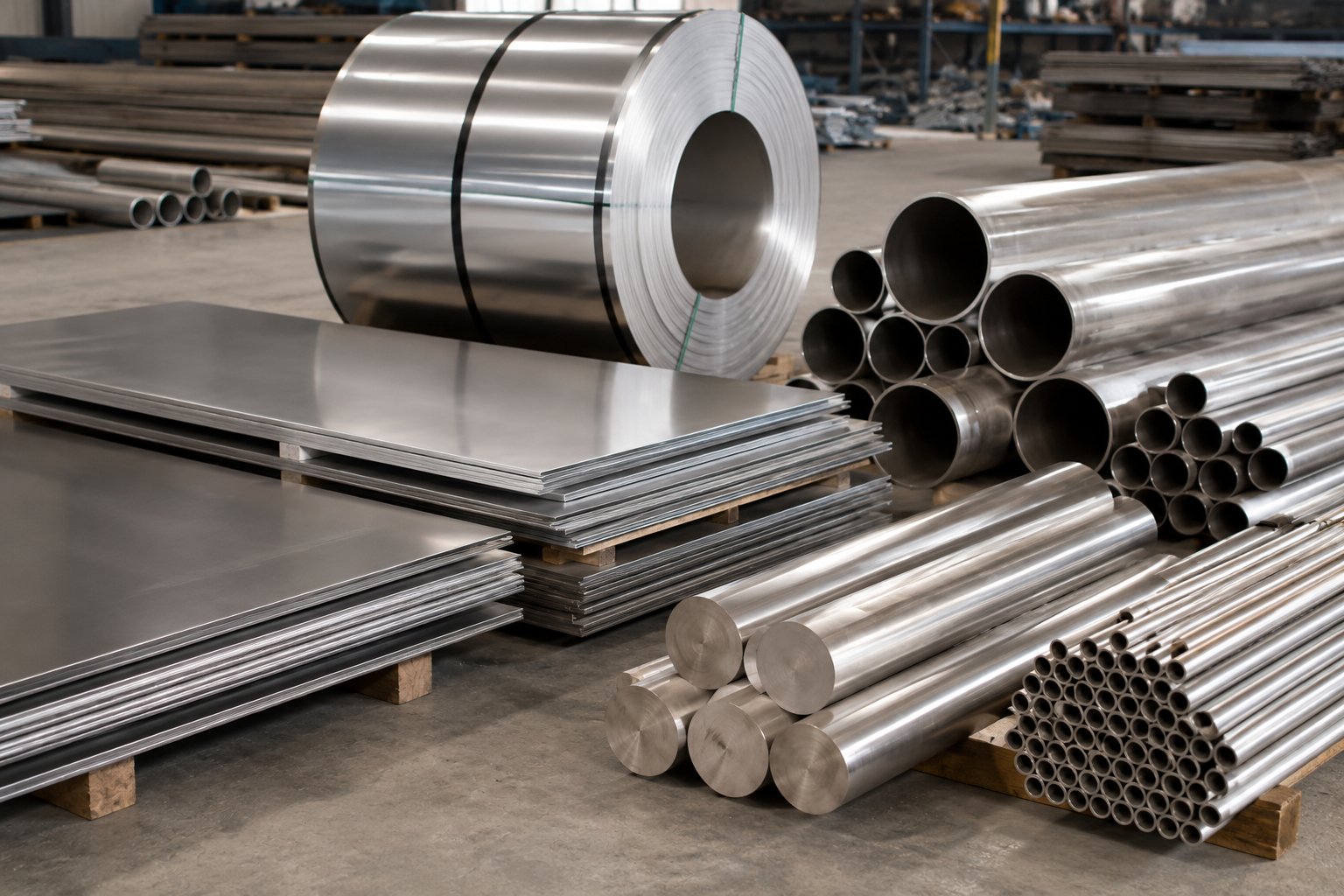

Super Duplex 2507 Products and Order-Ready Supply
Super Duplex 2507 is a high-chromium, molybdenum- and nitrogen-alloyed duplex stainless steel identified as UNS S32750. Source it from a spec-driven RFQ for plate, sheet, coil, pipe, tube, round bar or forged components. TiAlloy helps engineering, quality, and procurement teams bridge the purchase standard, unit system, inspection plan, processing scope, and export document gaps before order release.
20+ years
metal manufacturing experience
30,000+ m²
modern production base
Export support
Europe, Asia, the Middle East, South America, Japan, and Korea

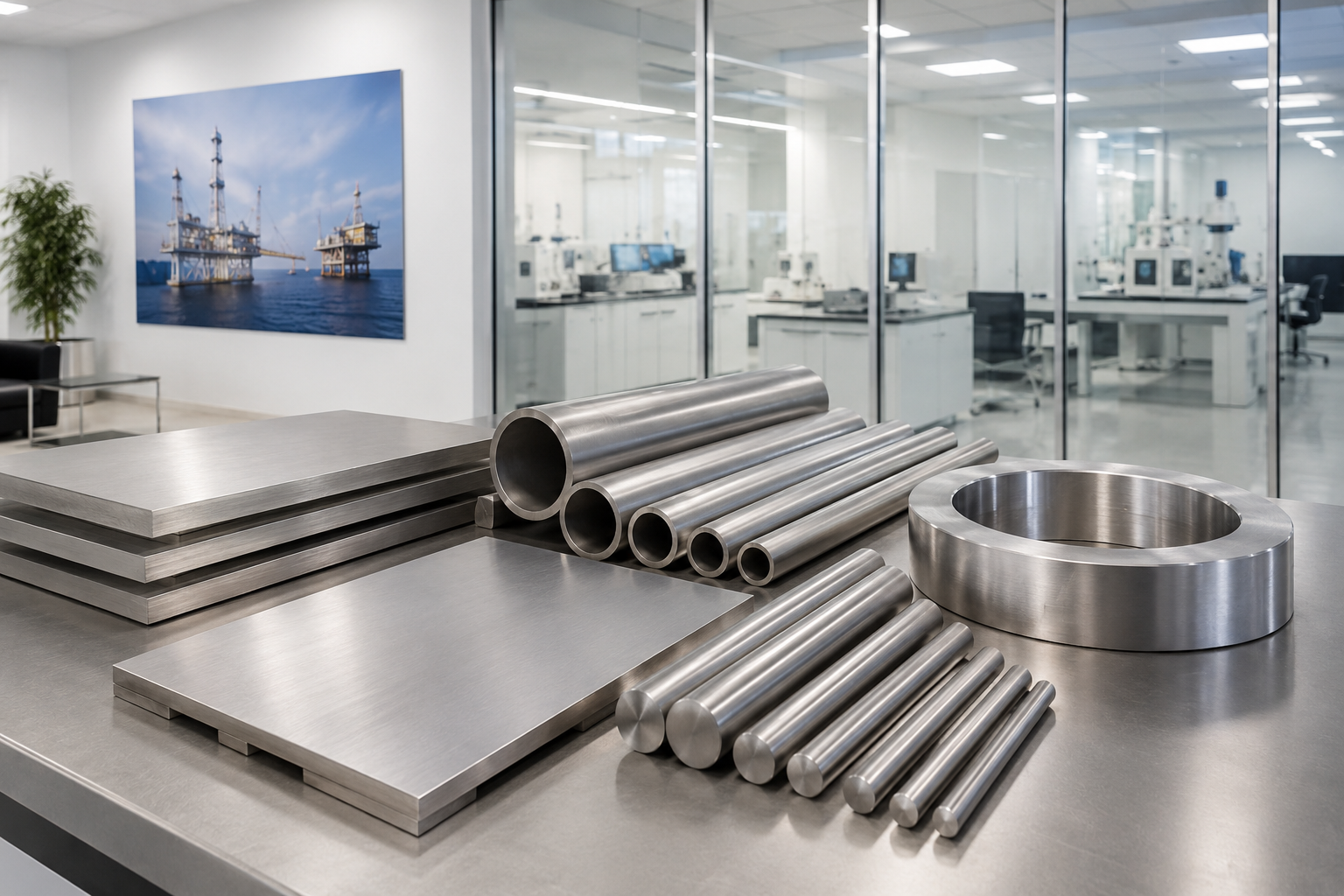

Super Duplex 2507 Supply for Demanding Service
Authority checkpoint
For duplex metallurgy and weld-quality control, review the project applicability of ISO 17781:2017 alongside the form-specific purchase standard.
An expensive mistake isn’t selecting too little alloy; it’s buying a grade name without a service boundary or purchasable specification. Super Duplex 2507 contains high Cr, Mo, Ni, and N in a duplex ferrite-austenite structure, but real performance still depends on product form, heat history, fabrication, and the operating environment.
Producer references, not order guarantees
Alleima publishes nominal values of 25% Cr, 7% Ni, 4% Mo, and 0.3% N for SAF 2507 bar, with a minimum PRE of 41; Outokumpu publishes a close typical composition for its S32750 product. Use those producer values to understand the alloy family, then use the applicable purchase standard, ordered condition, and acceptance criteria to release material.

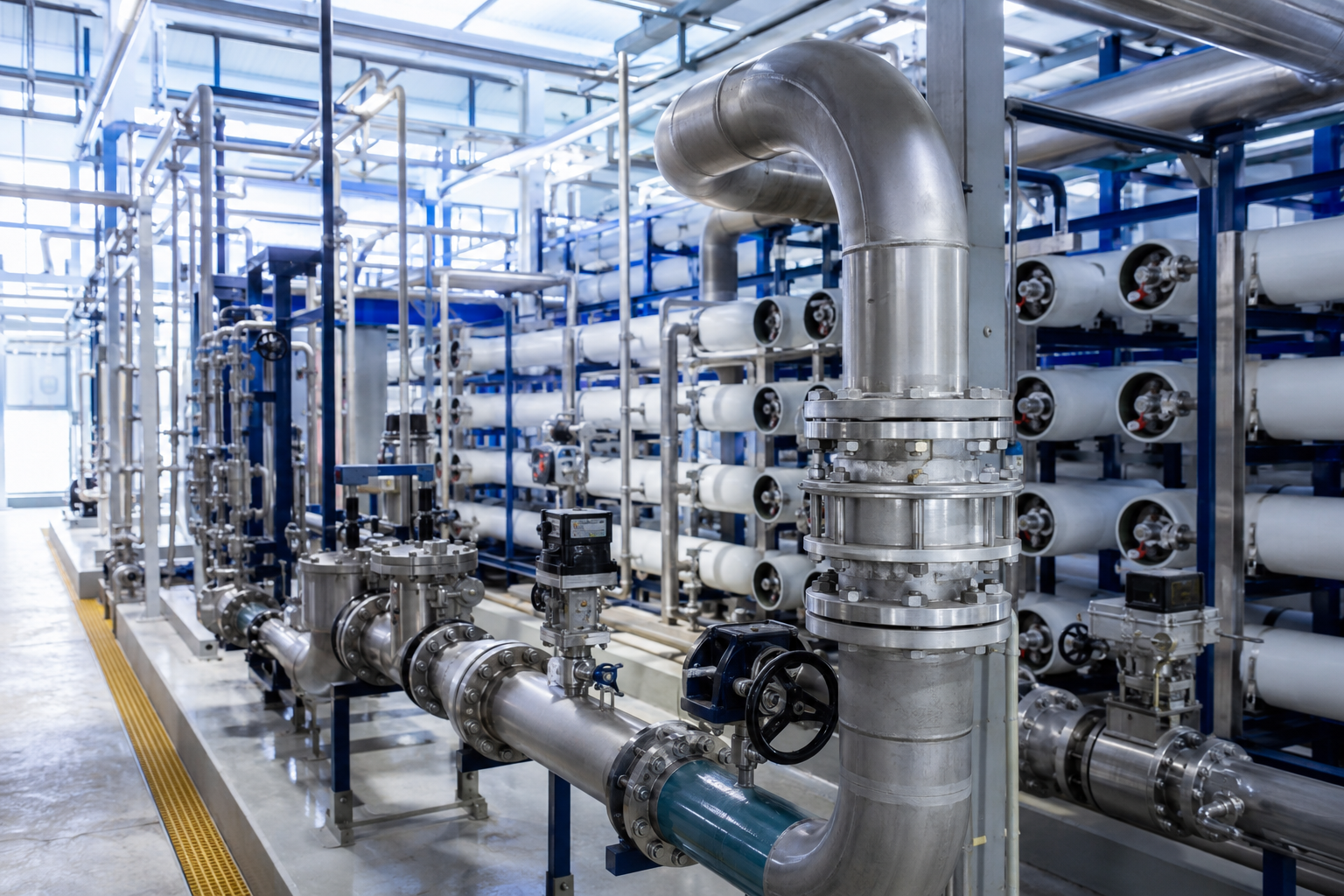

Start with the medium
- chloride level and chemistry
- temperature and pressure envelope
- oxygen, flow, deposits, and cleaning regime
- pitting, crevice, erosion, and stress-corrosion risk

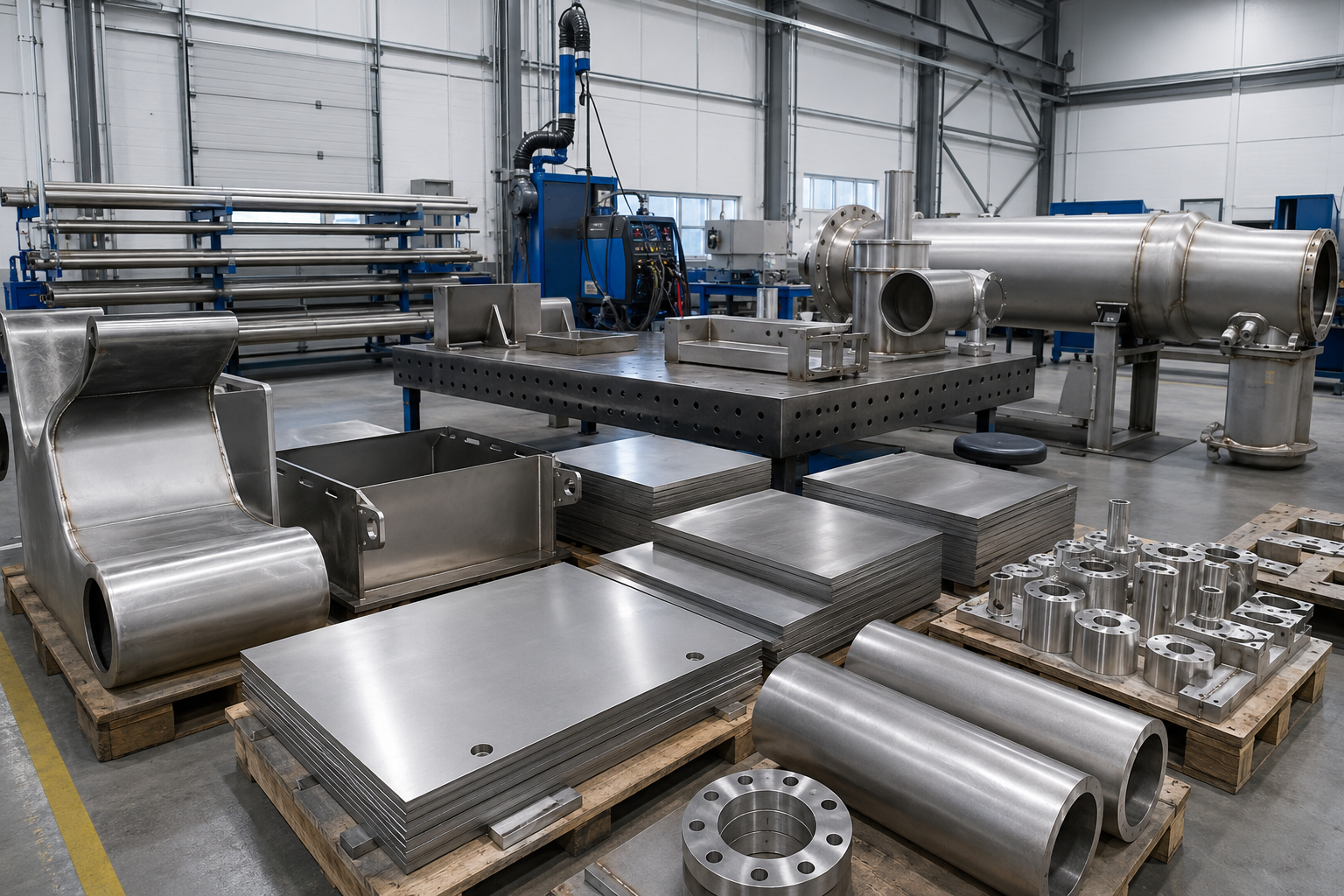

Then close fabrication
- welding process and qualified filler
- cold work, forming, and machining allowance
- solution-annealed condition where required
- surface finish, pickling, and passivation scope

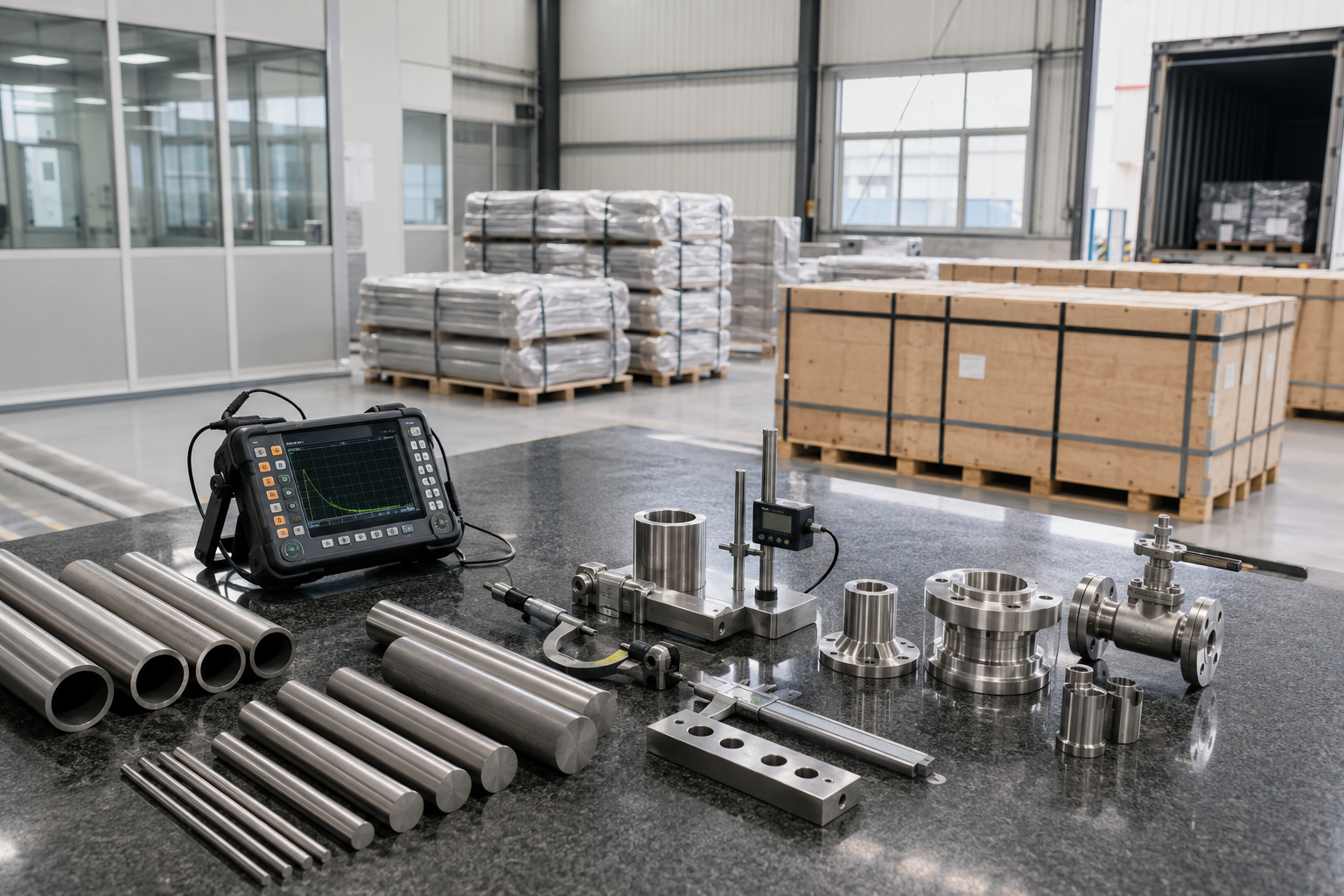

Release with evidence
- heat and lot traceability

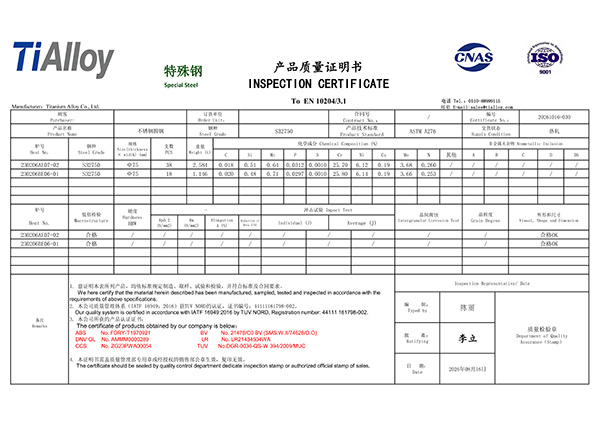

- material test certificate fields
- ASTM A923 applicability and test method
- nondestructive testing and third-party hold points
A higher PRE doesn’t automatically qualify 2507 for every chemical processing, offshore, marine, heat exchanger, or desalination duty. TiAlloy’s quote review is based on the missing service and acceptance parameters, not on generic “best grade” claims.
Buyer decision
Send the medium, temperature, pressure, design code, product form, fabrication route, and inspection expectation with the RFQ. If the service boundary is still unresolved, ask for a material-selection discussion before requesting a price.
Low-friction next step: Ask an alloy engineer to check whether the inquiry contains enough service data.

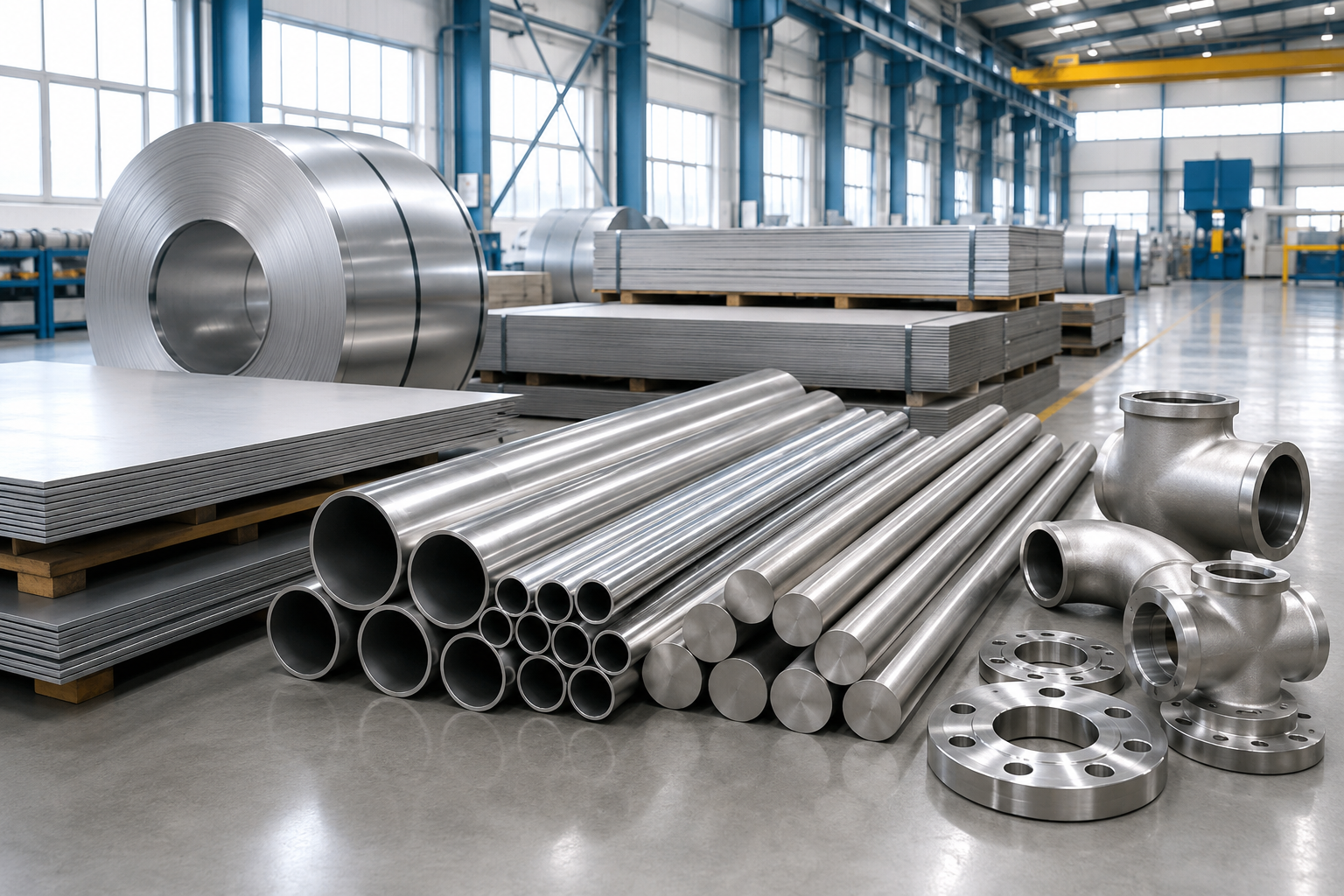

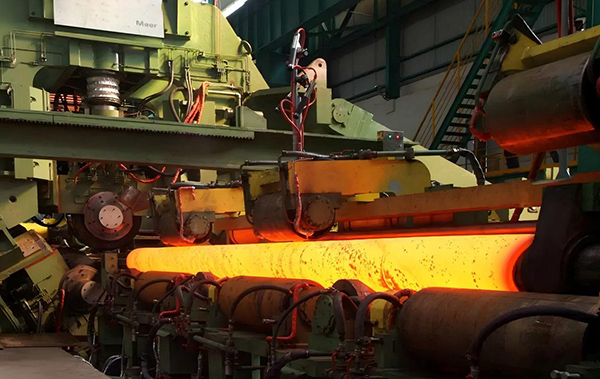

Ask an Alloy Engineer2507 Product Forms and Processing Options
Authority checkpoint: Product form affects sampling, microstructure control, and documentation; define whether ISO 17781:2017 applies before order release.
A seemingly lower price may stem from an altered product form, tolerance route, testing scope or finish. While we source plate, sheet, coil, pipe, tube, round bar and forged components, specific availability, dimensions, quantity, process route and delivery timeframe are confirmed on a case-by-case basis.
| Requested form | Purchase route to confirm | Useful RFQ inputs | Release risk if omitted |
|---|---|---|---|
| Plate, sheet, coil | ASTM A240/A240M or the named project standard | thickness, width, length or coil mass, edge, surface, flatness | wrong unit system, tolerance, or finish |

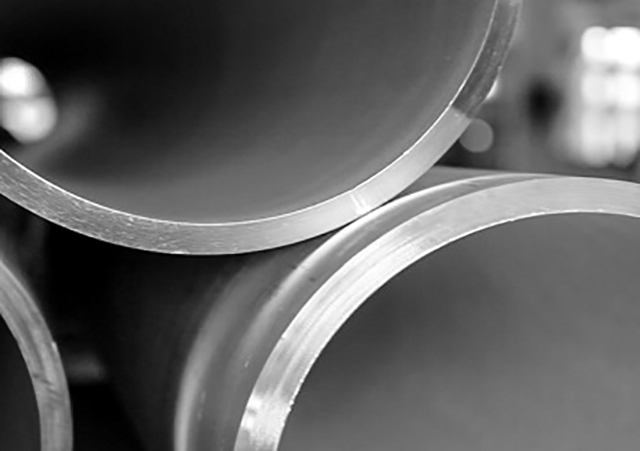

| Pipe | ASTM A790/A790M; weld-free or welded route | NPS or outside diameter, schedule or wall, length, ends, test scope | pipe/tube mismatch or incomplete hydro/NDT request |
| Tube | ASTM A789/A789M or project tubing specification | outside diameter, wall, length, exchanger duty, eddy-current or hydro test | inspection and dimensional gaps |
| Round bar and shapes | ASTM A276/A276M or A479/A479M as applicable | diameter, length, condition, straightness, machining allowance | bar condition or mechanical-property mismatch |
| Forged piping components | ASTM A182/A182M F53 when applicable | component type, class, drawing, heat treatment, NDT, marking | treating an F53 forging label as a universal 2507 form |
Related product path
For pipe and tube dimensional, manufacturing-route, and inspection decisions across stainless grades, review TiAlloy’s stainless steel pipe and tube supply solution.
ASTM A182/A182M distinguishes forged or rolled components from products machined from bar or hollow bar, with each path potentially following a distinct specification. This subtle boundary is why TiAlloy doesn’t treat plate, pipe, tube, bar, and forging as interchangeable inventory descriptions.

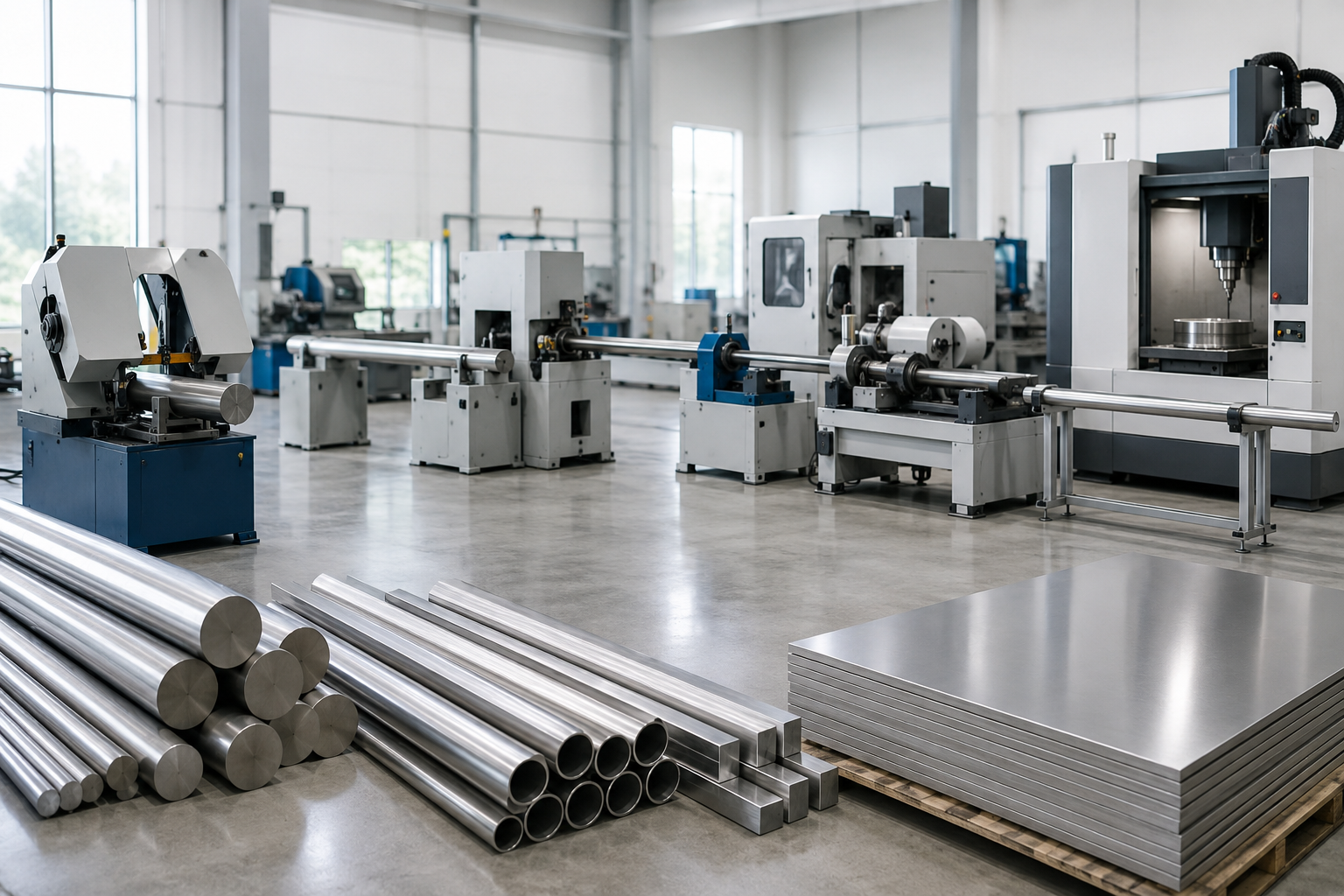

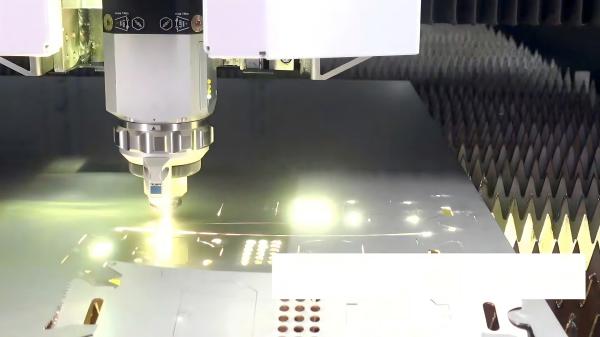

- cutting and sawing
- straightening and leveling
- peeling and centerless grinding
- polishing, chamfering, and CNC machining

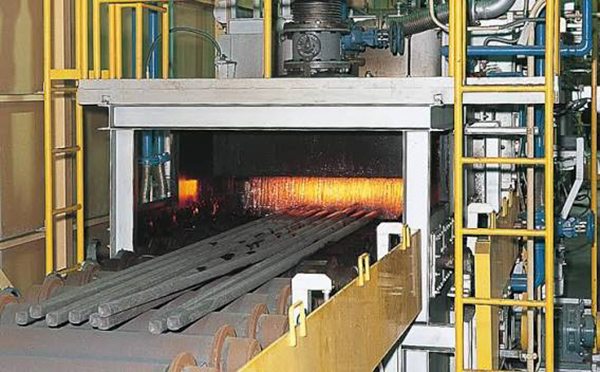

- solution annealing by agreed route
- pickling and passivation
- bright or ground finish where feasible

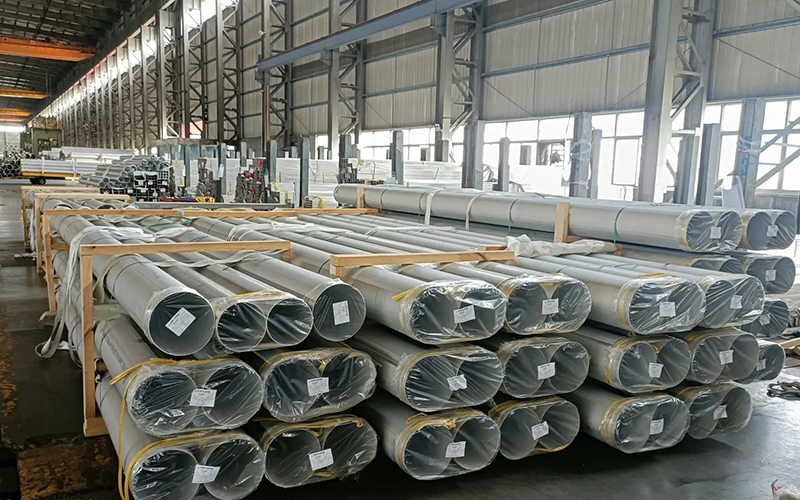

- protective packing matched to destination
- mill or processed supply route
- raw versus finished dimensions
- inspection and witness points
- shipping marks and export documents

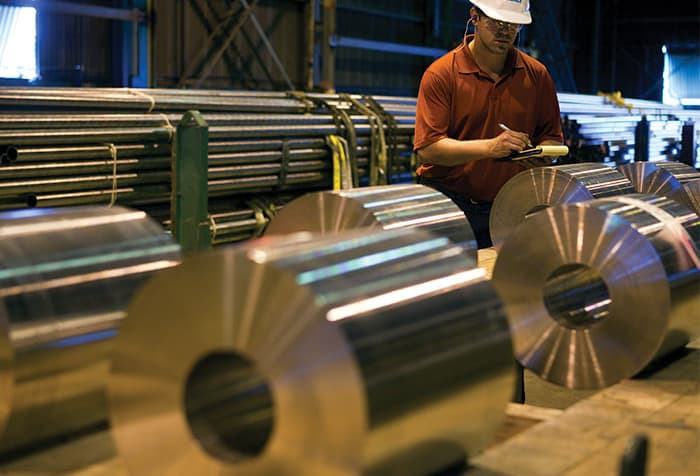

S32750 stainless steel coil supplied for order-specific processing
Supplied asset: S32750 stainless steel coil. It is used only as coil evidence and does not represent plate, pipe, tube, bar, or forging inventory.
Need a form check? Send the drawing or dimensional list and request the 2507 RFQ checklist.

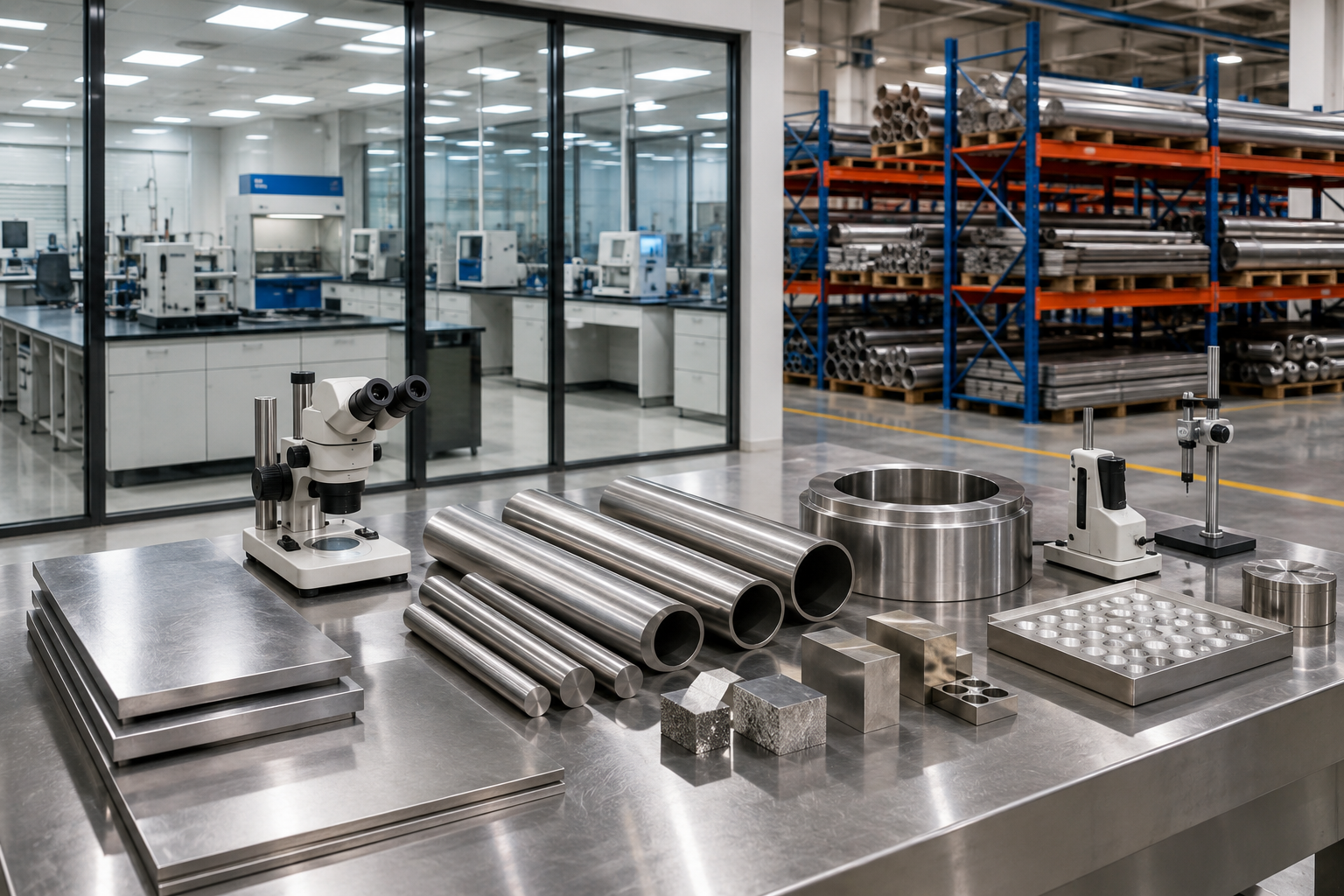

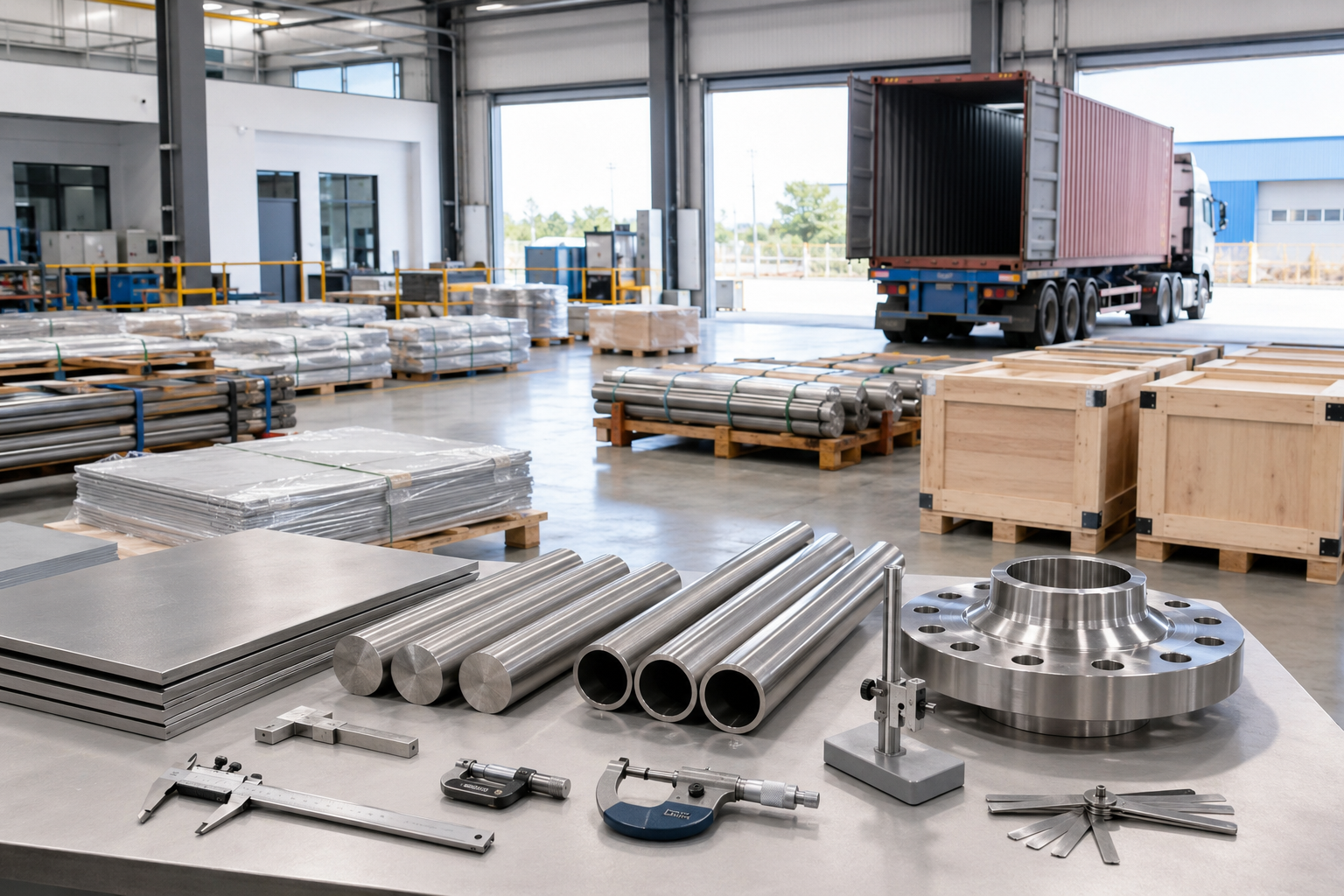

Release a Purchasable UNS S32750 Specification
Authority checkpoint: Add the applicable microstructure, sampling, acceptance, and documentation controls from ISO 17781:2017 instead of relying on a grade label alone.
“UNS S32750, size as discussed” is insufficient as a purchase specification. This gap forces suppliers to guess product standard, edition, SI/inch-pound units, delivery condition, dimensions, additional requirements, testing, and documentation, leading to quote inconsistencies.
Unit-system control is a release item
ASTM A240/A240M-26 treats SI and inch-pound requirements as separate standard systems and states that combining values may cause nonconformance. If the order uses ASTM A240 without the “M” designation, the inch-pound route applies; write the chosen system into the RFQ and drawing set.
What it can indicatethe UNS alloy designation
What it does not proveproduct form, condition, standard, or acceptance plan
Required buyer actionadd the form-specific purchase standard
What it can indicatea European designation associated with the alloy family
What it does not proveautomatic substitution under an ASTM order
Required buyer actionname the governing EN or ASTM route
What it can indicatea producer commercial designation published with datasheet values
What it does not provea generic contractual guarantee from every supplier
Required buyer actiontranslate the reference into order requirements
What it can indicatean ASTM A182 forging grade designation when that standard applies
What it does not proveplate, coil, pipe, tube, or bar compliance
Required buyer actionkeep the grade tied to forged-component scope
What it can indicatea separate super duplex UNS grade
What it does not provefree interchangeability with S32750
Required buyer actionobtain design and specification approval before substitution
Material composition and strength alone don’t guarantee the absence of harmful intermetallic phases. ASTM A923-25 outlines Methods A, B, and C, and the purchase order should clearly state if a method is applicable, the sample source, the governing acceptance criteria, and whether the test is mandatory or informative.
- grade plus permitted or prohibited substitutions
- product form and governing standard edition
- unit system and final dimensions with tolerances
- delivery condition, finish, and processing scope
- chemical, mechanical, corrosion, microstructure, and NDT requirements
- inspection certificate, marking, packing, and destination documents
“A grade name is not a purchase specification. We release a 2507 order only after product form, standard, unit system, inspection method, and delivery documents agree.”
Engineering Fit for Chemical, Offshore, and Seawater Systems
| Decision field | Duplex 2205 direction | Super Duplex 2507 direction | Evidence still needed |
|---|---|---|---|
| Typical alloy reference | about 22 Cr, 5 Ni, 3 Mo, 0.15 N | about 25 Cr, 7 Ni, 4 Mo, 0.3 N | ordered chemistry limits under the governing standard |
| Relative pitting resistance | lower alloying and PRE than 2507 | producer reference PRE minimum 41 | service temperature, chloride, deposits, oxygen, and crevice geometry |
| Fabrication | duplex heat and weld control still required | narrower tolerance for harmful thermal history may matter | qualified welding procedure, filler, heat input, and cooling route |
| Commercial decision | may reduce material cost when service allows | may reduce corrosion exposure or section need in a valid design | life-cycle model, design code, availability, and inspection cost |
Property language needs a test condition
Local corrosion
+Use pit depth, pitting resistance, resistance to pitting, crevice corrosion, pitting and crevice corrosion, chloride pitting and crevice corrosion, pitting and crevice corrosion attack, stress corrosion cracking, chloride stress corrosion cracking, and resistance to chloride stress corrosion only with a named medium, temperature, method, and acceptance rule.
Alloy chemistry
+Chemical composition terms such as chromium, molybdenum, nickel, nitrogen, high chromium, high molybdenum, chromium and nitrogen content, and nitrogen content describe alloy design; 2507 is not a nickel alloy, and producer references do not replace purchase limits.

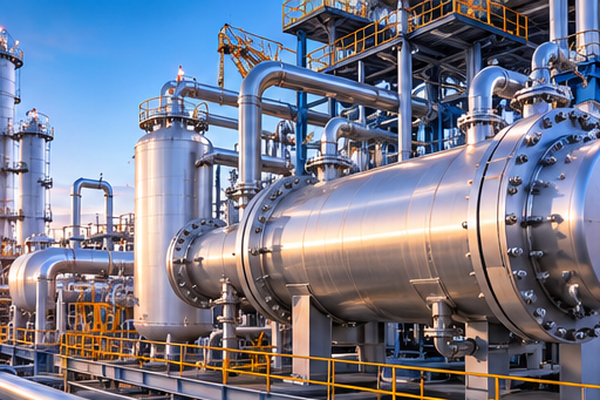

General and acid corrosion
+Claims about general corrosion, being resistant to uniform corrosion, uniform corrosion by organic acids, organic media, acid duty, or formic and acetic acid require concentration, temperature, contaminants, flow, and test context.

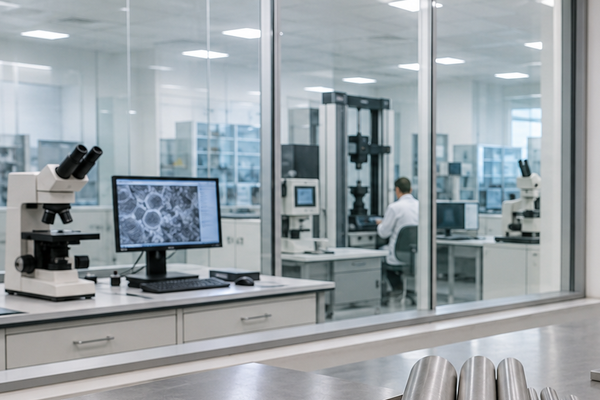

Mechanical and physical properties
+Mechanical properties, yield, high strength, exceptional strength, toughness, ductility, fatigue, toughness and corrosion resistance, coefficient, thermal expansion, and high thermal conductivity must stay tied to product form, condition, direction, and the governing test standard.

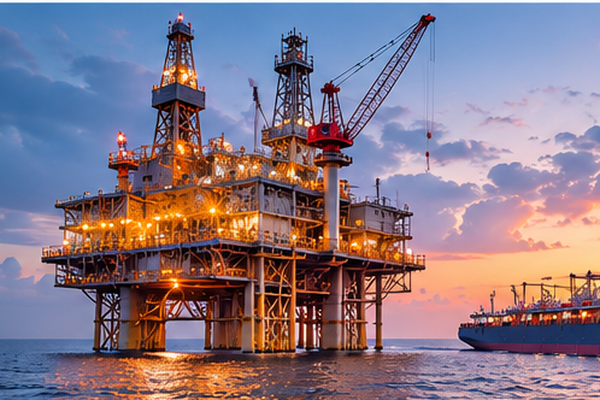

Application boundaries
An austenitic stainless grade differs from this super duplex stainless steel designed for applications in oil and gas, offshore platforms, the power industry, and other industrial or demanding applications: its duplex structure provides 2507 with exceptional resistance, while the balanced structure provides 2507 with exceptional strength and corrosion resistance only when processing preserves phase balance; phrases such as applications below 600° F, 316° C, excellent resistance, good weldability, or “2507 should be limited” are not design limits without source context.
Engineering Investigation
Simply switching to 2507 won’t fix a failing system. One heat-exchanger investigation reported cracks in more than 20% of tube welds after a 2507 upgrade, with dissimilar filler metals, thermal stress, and design flaws among the causes; a material upgrade can’t replace welding and mechanical review.
| Service question | If unknown | Buyer action before grade release |
|---|---|---|
| What is the maximum operating and upset temperature? | thermal and corrosion limits remain open | provide the process datasheet and transient cases |
| Where can deposits, stagnant liquid, or crevices form? | bulk-fluid chemistry understates local risk | mark geometry and cleaning conditions |
| Which weld procedure and filler are approved? | phase balance and joint integrity remain unproven | align WPS, filler, heat input, and inspection plan |
| Can 2205 or S32760 be substituted? | cost or compliance may be misread | obtain written design-authority approval |

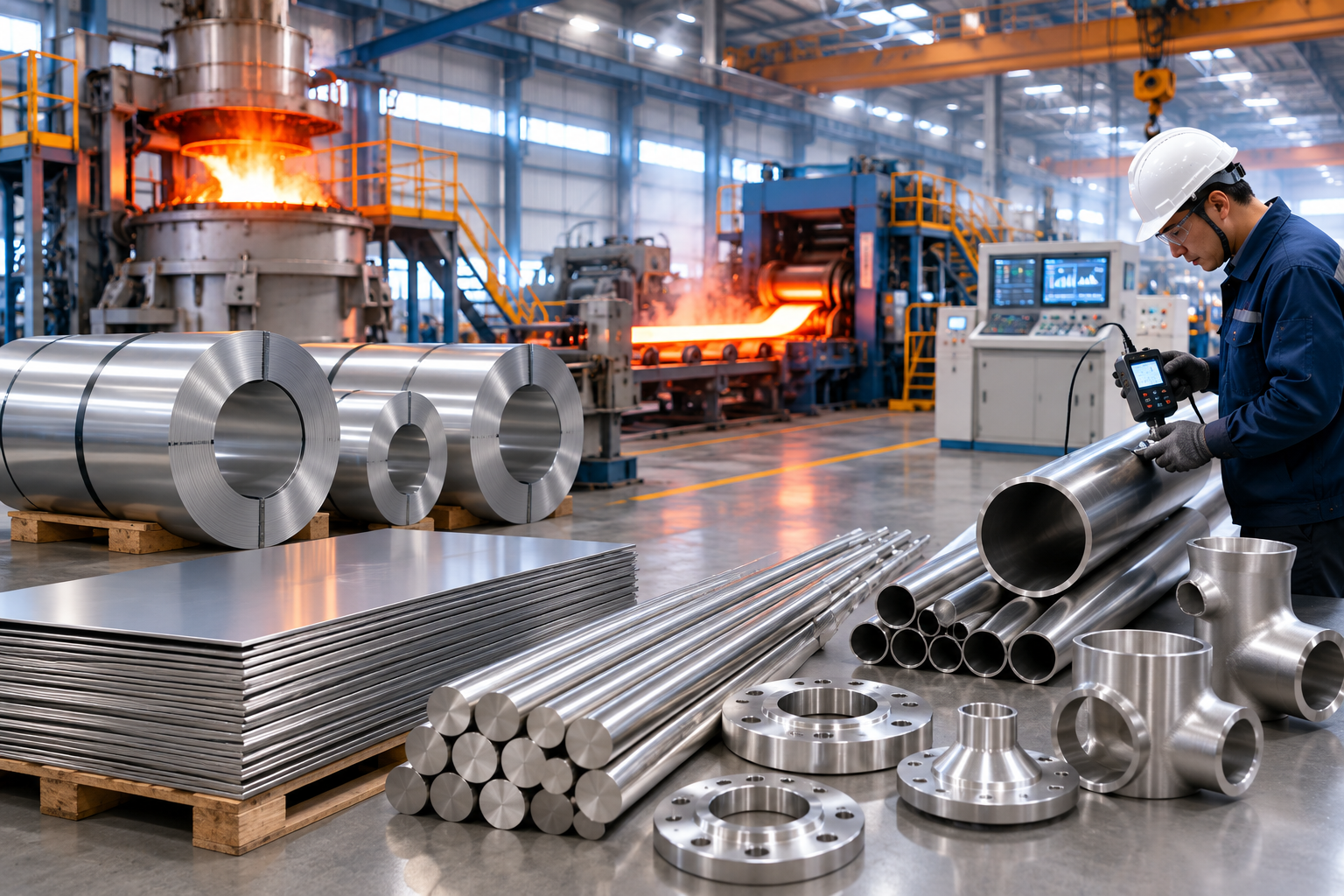

Manufacturing, Inspection, and Traceability Control
Authority checkpoint: Use ISO 17781:2017 to frame microstructure quality control, sampling, acceptance criteria, and records when it is invoked by the project.
An extensive list of equipment doesn’t ensure that a specific S32750 heat was produced according to the correct process. While TiAlloy’s manufacturing footprint includes melting, forging, hot/cold rolling, heat treatment, bar and tube processing, CNC machining, surface treatment, inspection support, and packaging, the purchase order must specify which operations and tests apply to the product being procured.
01 / PROCESS

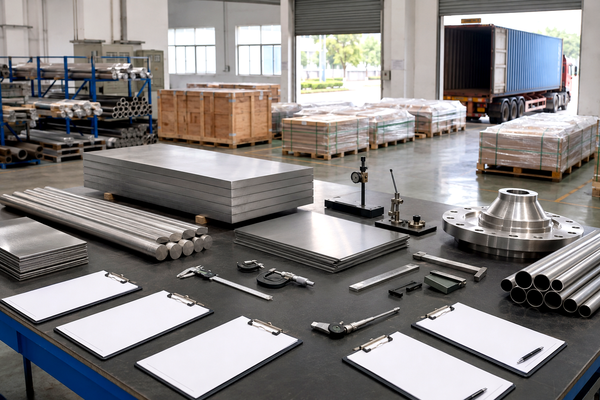

Route definition
Record whether the material route uses VIM, VAR, ESR, forging, rolling, solution annealing, tube production, bar finishing, or outsourced steps. Only the applicable route belongs in the order record.
02 / PROCESS
Heat history
Define the delivery condition and required heat-treatment evidence. Duplex performance can fail when thermal history encourages detrimental phases or an unsuitable ferrite-austenite balance.
03 / SPECIFICATIONS
Sampling location
For ASTM A923 or ISO 17781 work, state the product region and sampling plan. A convenient coupon may not represent the slowest-cooled or most susceptible section.
04 / SPECIFICATIONS

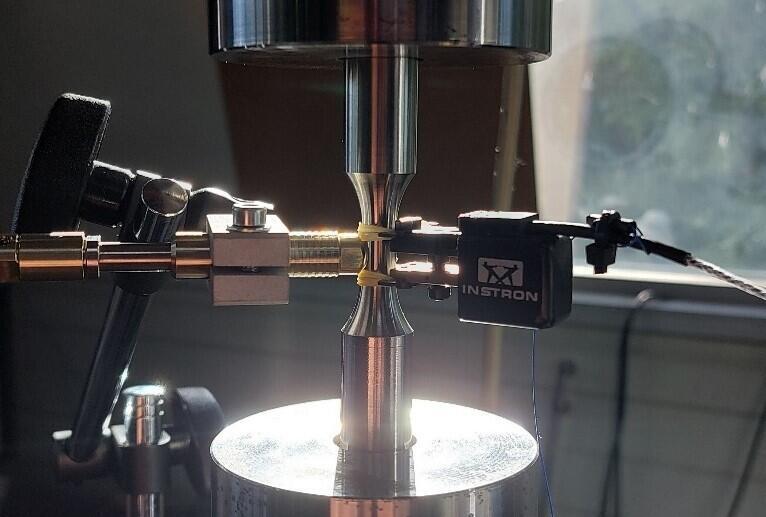

Inspection scope

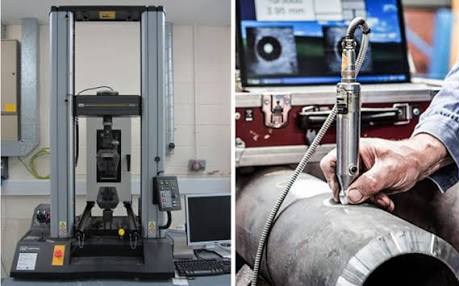

Close chemical analysis, mechanical tests, PMI, corrosion or microstructure testing, dimensional checks, NDT, and third-party witness points. Inspection scope changes by form and project specification.
05 / RESOURCES
Identity chain
Keep heat, lot, piece marking, cut-piece transfer, material test certificate, and packing list aligned. Traceability gaps often appear after cutting or machining, not at melting.
06 / RESOURCES
Release record
Confirm deviations, concessions, inspection status, document language, and destination marking before shipment. A passed test doesn’t close an unapproved specification change.
ISO 17781:2017, confirmed current by ISO in 2023, covers microstructure quality control, sampling, acceptance criteria, and documentation for duplex stainless steel components and welds. It supports an evidence-specific release; it does not certify a supplier based on equipment ownership.
Why ASTM A923 can be added
ASTM A923-25 targets detrimental intermetallic phase using three methods across roughly 320–955°C exposure concerns. Applicability and acceptance must be specified explicitly for the ordered form, section, sampling position, and project rather than copied into every order as a mechanical checkbox.
- Fabrication risk: forum discussions repeatedly mention porosity, filler cost, machining movement, and weld preparation. Those are buyer-language signals; the technical response is a qualified procedure, defined heat control, correct filler, planned inspection, and finished-dimension verification.
- Inspection planning: request a review of material certificate, ASTM A923, PMI, NDT, dimensional, and third-party fields.

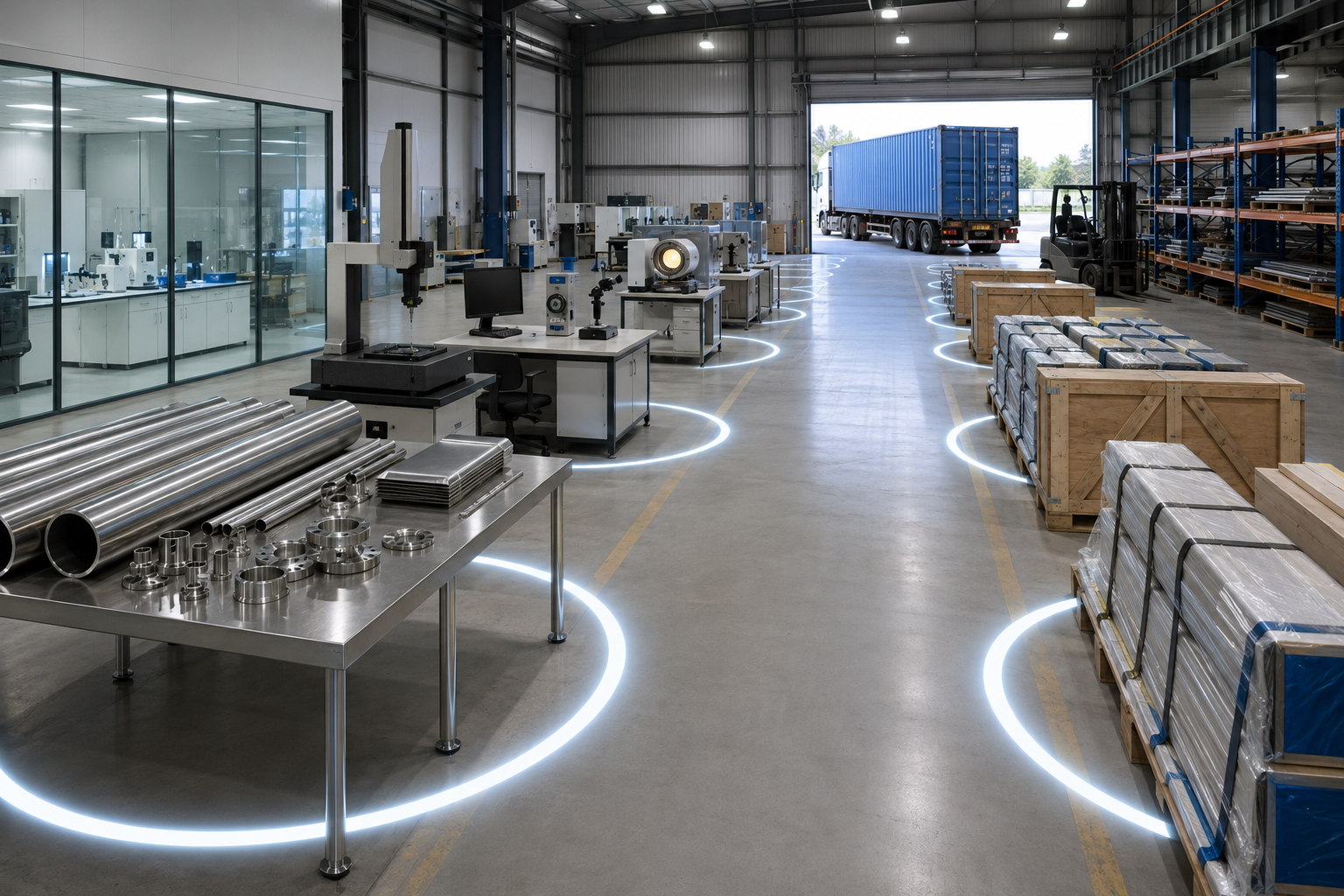

The 6-Checkpoint 2507 Order Release Protocol
Authority checkpoint: Checkpoint 04 makes the applicability and acceptance route explicit, including ISO 17781:2017 where the project requires duplex microstructure control.
Many cost and delivery problems start before a mill schedule exists: an RFQ is missing its standard edition, unit system, final dimensions, metallurgical review, or document list. The 6-Checkpoint 2507 Order Release Protocol turns those gaps into six decisions owned by engineering, procurement, quality, and logistics.
| Checkpoint | Close before release | Evidence or owner | Problem prevented |
|---|---|---|---|
| 01 Service | medium, temperature, pressure, design code, corrosion mode | process datasheet and design authority | wrong grade or over-specified alloy |
| 02 Grade and form | UNS S32750, substitution rule, plate/pipe/tube/bar/forging | material specification and drawing | S32750, S32760, or F53 scope confusion |
| 03 Standard and units | purchase-standard edition, SI or inch-pound, supplementary requirements | purchase order and drawing baseline | technically compliant but contract-ineligible material |
| 04 Metallurgy and inspection | condition, ASTM A923/ISO 17781 applicability, PMI, NDT, witness points | inspection and test plan | hidden phase, weld, or test-scope risk |
| 05 Processing and dimensions | raw/final size, tolerances, cutting, machining, finish, marking transfer | approved drawing and route card | machining movement, scrap, or identity loss |
| 06 Documents and delivery | certificate type, reports, packing, Incoterm, destination, release timing | document index and logistics owner | inspection delay or export-document mismatch |
This protocol doesn’t remove project engineering or turn a blank inquiry into guaranteed performance. Instead, it separates unresolved engineering decisions from supplier execution, allowing two quotes to be compared on equivalent material, inspection, processing, and delivery scope.
Quote-ready
- all six checkpoints have named inputs
- deviations are visible
- documents and witness points are costed
Engineering hold
- service or substitution approval is missing
- weld and metallurgy criteria remain open
- design authority owns the next decision
Commercial hold
- quantity, final size, packing, or Incoterm is missing
- quotes can’t be normalized
- procurement owns the next decision
Real buyer signal
One recent project discussion described cost, lead-time, and branch-weld complexity arriving together. Checkpoints 02, 04, 05, and 06 force those variables into the quote before the change becomes a fabrication surprise.
Use the protocol: send your existing RFQ and ask TiAlloy to flag open checkpoints.

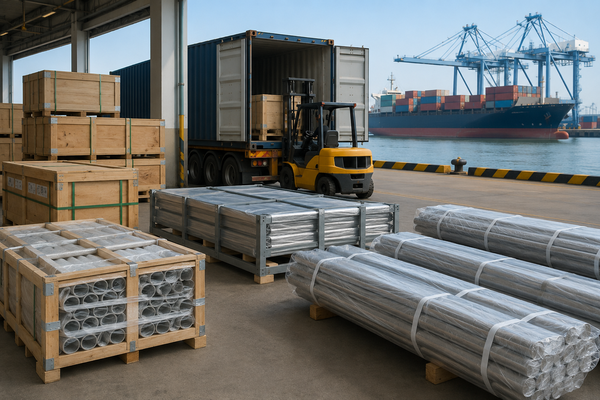

Documented Quality, Export Delivery, and Support
Authority checkpoint: When invoked, ISO 17781:2017 links duplex microstructure requirements to sampling, acceptance criteria, and documented release evidence.
On new sites, trust fails when badges, legal entities, heat numbers, and shipping paperwork diverge. With more than two decades of experience, TiAlloy reports a production footprint above 30,000 m² and export experience in Europe, Southeast Asia, the Middle East, South America, East Asia, Japan, and Korea; order-level assurance must accompany the goods.
PHASE 01
Pre-sale review
grade, specification, size, standard cross-reference, and quotation inputs
PHASE 02
Order tracking
production progress, inspection, document, packing, and shipment coordination
PHASE 03
Export support
marking, packing list, certificate index, shipping, and destination details
PHASE 04
After-sale response
feedback handling, technical support, and documented issue review
Certification binders were received listing Jiangsu Daxun Alloy Co., Ltd. and containing ISO 9001 and EN 9100 evidence. However, a direct legal link to the TiAlloy brand was not demonstrable. Thus, we refrain from displaying these logos and proclaiming TiAlloy certification; similarly withheld are the ISO 14001, ISO 45001, and a Rolls-Royce approval tied to another legal entity.
Before awarding: request a sample document index and confirm which records are included, optional, or third-party. This prevents a low quote from becoming expensive after the inspection plan is added.
Evidence check: ask for the document list that matches your form, standard, inspection scope, and destination.
A logo is insufficient evidence that a specific heat, size or test satisfies the PO. TiAlloy’s trust is evidence-based: associate legal entity, certificate scope, PO document, heat or lot, and release status with every claim made.
Check Required Documents
What an order evidence pack can contain
- purchase order, approved drawing, and deviation register
- material test certificate with heat and product identity
- chemical and mechanical test results required by the order
- ASTM A923, microstructure, corrosion, PMI, NDT, or dimensional reports when specified
- third-party inspection release and witness records when ordered
- marking photographs, packing list, shipping marks, and export documents
Super Duplex 2507 Engineering Tools
2507 Standard Selector
Identify the exact ASTM/ASME specifications for your 2507 super duplex requirements. Ensure compliance across diverse industrial applications.
2507 RFQ Readiness Checker
Validate your Request for Quotation parameters. Verify that all critical dimensions, conditions, and testing requirements are specified.
Inspection Plan Builder
Configure customized testing and inspection protocols. Generate a comprehensive quality control framework for your 2507 orders.
They can point to related 2507 material, but they are not free-standing substitutes. UNS S32750 is the alloy designation, EN 1.4410 is a European designation, SAF 2507 is a producer commercial name, and F53 belongs to ASTM A182 forged-component scope; state the product form and governing standard.
Not always. Choose only after the service, corrosion mode, fabrication route, and life-cycle case are defined.
Match it to form: A240/A240M for plate, sheet, and strip; A790/A790M for pipe; A789/A789M for tube; A276/A479 for bars as applicable; and A182/A182M F53 for qualifying forged piping components. Then state the current edition, SI or inch-pound system, delivery condition, dimensional tolerances, supplementary requirements, certificate type, ASTM A923 applicability, nondestructive tests, and third-party witness points.
Metal mass is only one part of the change. Each branch may add a fitting, cut, fit-up, qualified filler, purge setup, controlled weld cycle, NDT location, repair exposure, traceability transfer, and document point; an isometric revision can therefore alter both factory work and the inspection schedule. Send the isometric or bill of materials before requesting a firm date.
Use an approved procedure, compatible filler, clean preparation, controlled heat, correct shielding or purge, and specified inspection. Grade selection alone can’t fix a poor joint.
Yes. Provide raw size, final datums, tolerance, allowance, and the agreed inspection stage.
No universal rule makes every method mandatory. Project specifications should identify whether Method A, B, or C applies, the sampling location, acceptance criterion, reporting format, retest rule, and witness status. That detail matters because chemistry and tensile compliance don’t necessarily exclude detrimental intermetallic phase.
Product form, dimensions, quantity, raw or finished condition, standard, heat treatment, testing, third-party inspection, machining, surface finish, packing, Incoterm, and destination all matter. Exact price and timing require a complete RFQ; this page doesn’t publish a universal range.
